CID Call Parser Dynamic Link Library
Help and Setup
Download
Right-click here and save CID_Call_Parser.dll into your project folder.Add Reference in your project
- Open your project in Visual Studio

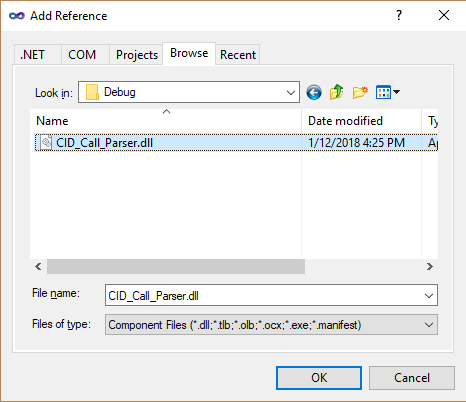

- In your Solution Explorer right-click on your project and select 'Add Reference'
-
Browse to where you saved CID_Call_Parser.dll and select it.
- Save your project. Now you have successfully added the CID_Call_Parser.dll reference to your project and you can now begin to use it.
How to code with CID_Call_Parser.dll
This is a simple way to use the CID_Call_Parser within a DataRecieve event. In this example the string that comes into the variable 'receivedData' is this:
^^<U>nnnnnn<S>nnnnnn$01 I E 0000 G A2 12/17 04:54 PM 770-263-7111 CALLERID.COM___
VB.Net Coding:
-- Receive data from Serial or UDP reception
DIM receivedData As String = ' Serial or UDP reception
' -- Create call record with string from reception
DIM callRecord As New CID_Call_Parser.CallRecord(receivedData)
' -- Now you have a callRecord with all the data parsed
' -- You can get it back from your callRecord by simply
' -- using a '.' after callRecord, as shown below:
DIM lineNumber As Integer = callRecord.Line
DIM callerIDNumber As String = callRecord.PhoneNumber
DIM callerIDName As String = callRecord.Name
C#.Net CodingDIM receivedData As String = ' Serial or UDP reception
' -- Create call record with string from reception
DIM callRecord As New CID_Call_Parser.CallRecord(receivedData)
' -- Now you have a callRecord with all the data parsed
' -- You can get it back from your callRecord by simply
' -- using a '.' after callRecord, as shown below:
DIM lineNumber As Integer = callRecord.Line
DIM callerIDNumber As String = callRecord.PhoneNumber
DIM callerIDName As String = callRecord.Name
// This goes at top of your form
using CID_Call_Parser;
// This goes in your DataRecieve event
string receivedData = // Serial or UDP reception
// Create record from reception string
CallRecord currentRecord = new CallRecord(receivedData);
// Now you have a callRecord with all the data parsed
// You can get it back from your callRecord by simply
// using a '.' after callRecord, as shown below:
string lineNumber = currentRecord.Line;
string callerIDNumber = currentRecord.PhoneNumber;
string callerIDName = currentRecord.Name;
All variables and functions in CID_Parser.CallRecord() [C# format but other Visual Studio languages work as well]using CID_Call_Parser;
// This goes in your DataRecieve event
string receivedData = // Serial or UDP reception
// Create record from reception string
CallRecord currentRecord = new CallRecord(receivedData);
// Now you have a callRecord with all the data parsed
// You can get it back from your callRecord by simply
// using a '.' after callRecord, as shown below:
string lineNumber = currentRecord.Line;
string callerIDNumber = currentRecord.PhoneNumber;
string callerIDName = currentRecord.Name;
public bool Detailed; // Detailed record or not
public string DetailedType; // ON/OFF Hook or Ring
public int Line; // Call line number
public string InboundOrOutboundOrBlock; // Inbound or Outbound
public string StartOrEnd; // Start or End record
public int Duration; // Call duration
public string CheckSum; // Call checksum
public string RingType; // Ring type
public int RingNumber; // Nnumber of rings
public DateTime DateTime; // Call time
public string PhoneNumber; // CallerId Phone number
public string Name; // CallerId Name
// These funtions below do as their name descibes, returning True or False
public bool IsDetailed() As Boolean
public bool IsOutbound() As Boolean
public bool IsInbound() As Boolean
public bool IsStartRecord() As Boolean
public bool IsEndRecord() As Boolean
public bool IsGoodChecksum() As Boolean
public string DetailedType; // ON/OFF Hook or Ring
public int Line; // Call line number
public string InboundOrOutboundOrBlock; // Inbound or Outbound
public string StartOrEnd; // Start or End record
public int Duration; // Call duration
public string CheckSum; // Call checksum
public string RingType; // Ring type
public int RingNumber; // Nnumber of rings
public DateTime DateTime; // Call time
public string PhoneNumber; // CallerId Phone number
public string Name; // CallerId Name
// These funtions below do as their name descibes, returning True or False
public bool IsDetailed() As Boolean
public bool IsOutbound() As Boolean
public bool IsInbound() As Boolean
public bool IsStartRecord() As Boolean
public bool IsEndRecord() As Boolean
public bool IsGoodChecksum() As Boolean
